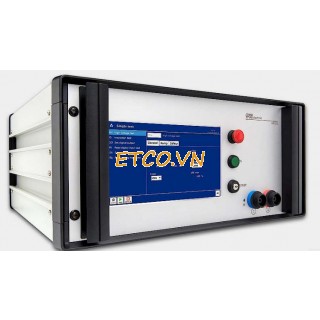

Thiết bị thử cao áp AC/DC SPS HA1885J, 5500VAC, 6000VDC 100mA, màn hình cảm ứng 10.1'', (High voltage tester SPS HA1885J with 10.1'' colour touchscreen - Hipot tester)
Hãng sản xuất: SPS Electronic
Model: HA1885J
Xuất xứ: Đức
Bảo hành: 12 tháng
Thông số kỹ thuật: Thiết bị thử cao áp AC/DC SPS HA1885J, 5500VAC, 6000VDC 100mA, màn hình cảm ứng 10.1'', (High voltage tester SPS HA1885J with 10.1'' colour touchscreen - Hipot tester)
Hiển thị: Màn hình màu, cảm ứng 10.1''
Điện áp thử AC: 500-5500V
Dòng AC: 0-100mA
Điện áp thử DC: 500-6000V
Dòng DC: 0-50mA
Dòng ra: 0 - 100 mA
Kích thước (HxWxD): 222 x 483 x 487 mm
Khối lượng: 24 kg
Nguồn cấp: 90 up to 250 V, 50 Hz / 60 Hz
High voltage tester SPS HA1885J with 10.1'' colour touchscreen - Hipot tester
Description
- High voltage tester with a fully electronic high voltage source up to 500 VA power.
- This performance and a short circuit current > 200 mA is required by global standards and is met by these devices.
- The in Europe required standards for work station safety at test stations of more than 1,000 V such as safety control panels and potential-free high voltage are also met.
- Thereby a global use in the test bay, in production and in the laboratory is possible.
High voltage test AC
- Voltage range: 100 up to 5,500 V
- Current range: 0 up to 100 mA
- Short circuit current: > 200 mA
High voltage test DC
- Voltage range: 100 up to 6,000 V
- Current range: 0 up to 50 mA
- Residual ripple: < 3 %
Insulation measurement DC
- Voltage range: 100 up to 6,000 V
- Measuring range (voltage dependent): 250 kΩ up to 10 GΩ
- Residual ripple: < 3 %
ARC detection
- Range: 0 up to 100%
Subjective tests
- Picture step / text step: Subjective or informative
General data
- Safety power panel: Built-in
- Threshold values: All programmable
- Error message: Visual and audible
- Clock / calendar: Internal
- Ramp function: Programmable (IEC 601)
- Generator: Fully electronic, digital technology
- Memory: Up to 64 Gbyte
- Additional function: Programmable inputs and outputs
- Dimensions (HxWxD) and weight: 222 x 483 x 487 mm / ca. 24.0 kg
- Mains supply: 90 up to 250 V, 50 Hz / 60 Hz
Interfaces
- Computer interfaces: USB, RS 232, Ethernet / LAN, CAN
- Digital interface: 24 VDC 8 input + 8 output
- Analogue interfaces: 10 VDC 2 x input + 1 x output
Operation
Touch: 10.1“-TFT colour display
